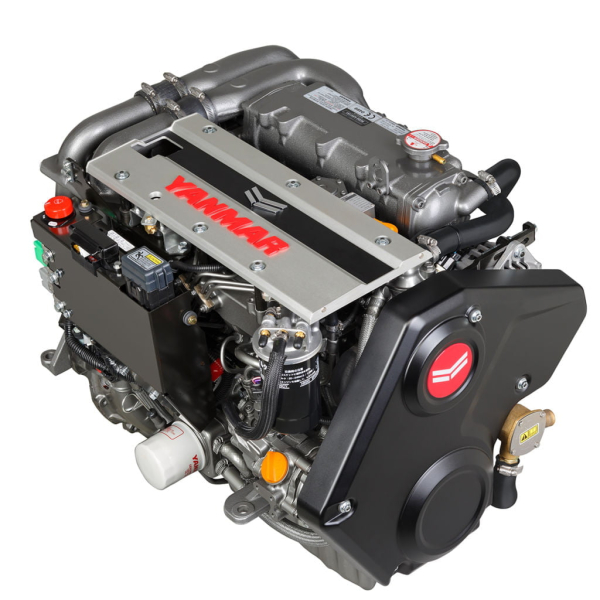

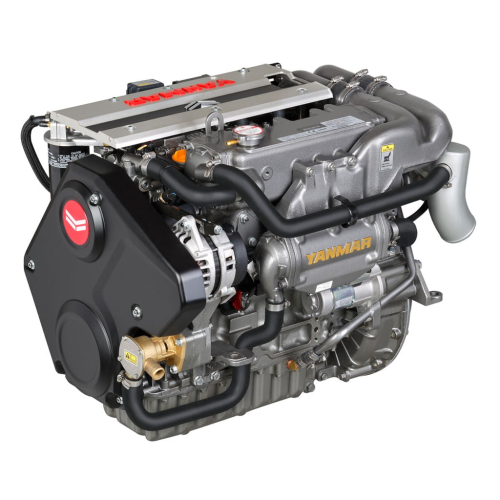

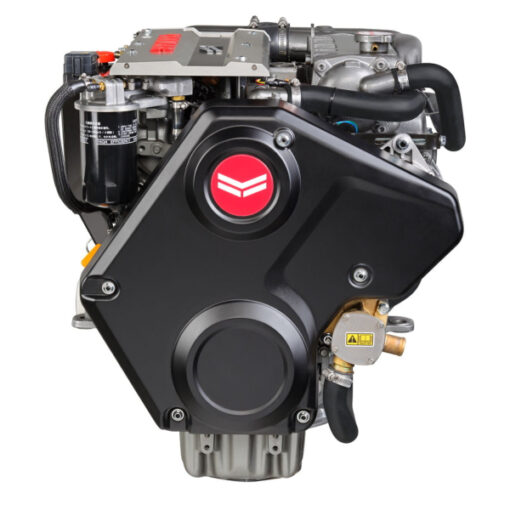

Yanmar 4JH110 Inboard Diesel Engine

Our Yanmar 4JH110 Inboard Diesel Engine for sale is designed for high-end performance and reliability durability and cutting-edge technology, YANMAR engines are the go-to choice for sailboats, small craft, and recreational boating. With the largest global service network and 5x Best in Class features, the Yanmar 4JH110 is a reliable and powerful choice for marine propulsion.

About Common Rail Technology

YANMAR integrates the most advanced common rail technology into their marine engines. This digital, high-pressure fuel injection system optimizes engine performance and efficiency. It reduces emissions, noise, and boosts peak power output for an exceptional onboard experience. The system uses multiple sensors that feed operating conditions to the Engine Control Unit (ECU), allowing precise fuel regulation based on real-time data such as throttle position, temperatures, pressure, and air intake. This results in reduced fuel consumption and more efficient combustion. Originally developed to meet strict automotive emissions regulations, YANMAR’s custom marinized common rail systems are engineered to meet their rigorous standards.

Yanmar 4JH110 Inboard Diesel Engine Specifications

• Rated Output: 80.9 kW / 110 mhp

• Rated Speed: 3200 rpm

• Displacement: 2 L / 122 cu. in

• No. of Cylinders: 4 cylinders

• Cylinder Bore x Stroke: 84 mm x 90 mm / 3.31 in x 3.54 in

• Combustion System: Direct Injection, Bosch Common Rail System

• Aspiration: Turbocharged & Intercooled

• Alternator: 12V – 125A

• Dry Weight Without Gear: 229 kg / 505 lbs

• Dimensions: 909 mm x 613 mm x 675 mm

• Controls: Mechanical (Optional VC10 System)

• Certifications: RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS

Standard Engine Package Includes:

• Exhaust mixing elbow [L-type]

• Alternator 12V – 125A

• Seawater pump (rear mounted)

• B25 panel

• Flexible mounts

• Mechanical throttle sensor

• Fuel pre-filter with water separator

• Fresh water expansion tank

• Belt safety cover

Optional Accessories:

• High-riser mixing elbow [instead of L-elbow]

• Secondary alternator 12V – 125A or 24V – 60A

• Seawater pump (front mounted)

• C35 panel

• Extension harness [3m, 5m, 10m]

• Second station

• Sidemount control head

• VC10 Vessel Control System

• NMEA2000 Engine Monitoring System

• SOLAS Certificate [Factory Fit Only]

• Hot water kit with cocks

• Extension saildrive leg [75 mm]

• Propeller cone nut kit SD60

• On-board spare parts kit

Availability: 23 In Stock
Model: 4JH110
Brand: Yanmar
