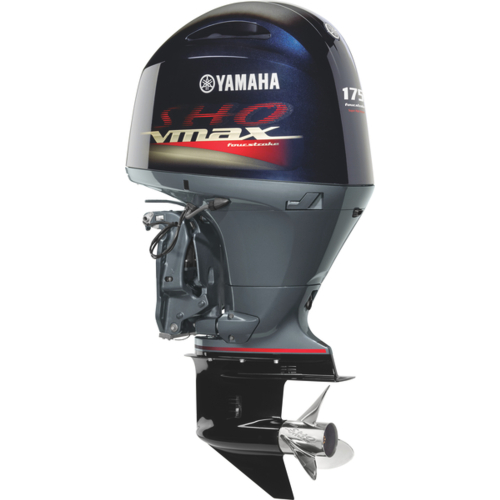

New Yamaha VF175XA 175hp V Max Sho Outboard Engine

The In-Line Four V MAX SHO four strokes have achieved the unthinkable—packing signature V MAX SHO hole shot and acceleration into streamlined designs. This powerful family now includes the all-new I-4 V MAX SHO 90, which packs the biggest punch of any 90-horse on the water. Overall, this series of 1.8- and 2.8-liter dynamos features a surprising tech package with 16 valves, single- or double-overhead cams and electronic fuel injection—for maximum efficiency and high performance. This makes the I-4 V MAX SHOs perfect for smaller bass, flats and bay boats and other performance hulls. With the option of a 25-inch shaft for all of our I-4 V MAX SHO outboards, anglers prowling big waters on multi-species, bay and flats boats have a competitive edge that runs deeper than ever.

SPECS :

Engine Type    Inline 4
Displacement    2.8L
Bore x Stroke    96 x 96.2mm (3.78 x 3.79in)
Prop Shaft Horsepower    175 hp at 5500 rpm
Full Throttle RPM Range    5000 ~ 6000 rpm
Alternator Output at W.O.T.    50 Amp
Compression Ratio    10.3:1
Fuel Induction System    EFI
Weight †    218 kg (480 lbs) – 222 kg (489 lbs)
Recommended Fuel    Octane 89
Recommended Engine Oil    Yamalube® 4M (See owner’s manual)
Recommended Fuel Filtration    Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating    3-Star
Exhaust    Through Propeller
Intake    16
Ignition    TCI Microcomputer
Spark Plug    LFR6A-11
Alternator Output    50 Amp
Starting System    Electric
Lubrication    Wet Sump
Engine Oil Capacity    4.5L/4.3L w/without filter
Recommended Cooling    Thermostatic Control
Ethanol Blend Limit    10% Maximum
Gear Ratio    1.86:1
Gear Shift    Forward, Neutral, Reverse
Shaft Length    20″ – 25″
Degree of Tilt    70°
Degree of Trim    -4° through 16°
Dry Weight    20″ shaft / 218 kg (480 lbs), 25″ shaft / 222 kg (489 lbs)
Mounting Centers    N/A
Steering Angle (maximum)    32° from center, either direction
Warranty    Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial

STANDARD FEATURES :

Power Trim & Tilt
Owner’s Manual
Prop included
