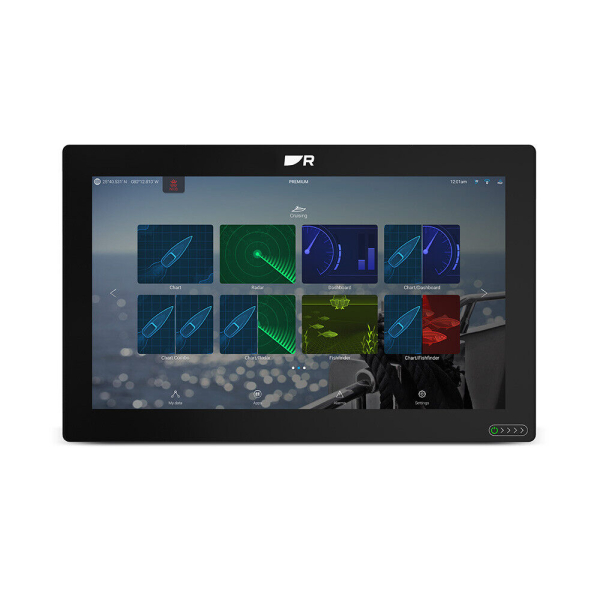

New Raymarine Axiom 2 XL 16 Glass Bridge Chartplotters

A COMMANDING VIEW

The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.

POWER THAT PUSHES THE LIMITS

Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.

6 Core Processor
Get underway and do everything faster

Ample Storage
64 GB for waypoints, apps, and LightHouse Charts

Smooth Video and Faster Charts
Faster video frame rates and 30% faster chart rendering

READY FOR ALL CONDITIONS

Axiom 2 XL’s exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.

SMART BACKLIGHTING

Axiom 2 XL’s ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.

REMOTE CONTROL

Navigate effortlessly with Axiom 2 XL’s touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.

Discover More
Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.

Upgrade your Awareness
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.

Turn Night Into Day
FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.

Fish to the Max

Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.

Advanced Sailing Tools
Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.

Navigate with Confidence
Axiom 2 XL’s intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display

Make Smarter Decisions
Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.

Advanced Engine Integration
Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.

Stream, Watch, and Listen
Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 XL on the big screen with HDMI output.

Stay Connected

Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.

Axiom on your Smartphone

Built-in Wi-Fi lets you view and control your Axiom 2 XL on your phone or tablet with the Raymarine Mobile App.

Do More with LightHouse Apps

Expand the capabilities of our Axiom 2 XL with third-party apps from our marine technology partners.

SPECIFICATION :

ENVIRONMENTAL
Operating temperature
-25°C to 55°C (-13°F to 131°F)

Storage temperature
-30°C to 70°C (-22°F to 158°F)

Relative humidity
up to 93% @ 40°C (104°F)

Waterproof rating
IPx6, IPx7

PHYSICAL
Dimensions
Axiom 2 XL 16: Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in)

Axiom 2 XL 19: Height: 289.44 mm (11.40 in), Width, 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in)

Axiom 2 XL 22: Height: 326.33 mm (12.85 in), Width, 533.56 mm (21.00 in), Depth (including cables): 180.75 mm (7.12 in)

Axiom 2 XL 24: Height: 386.84 mm (15.23 in), Width, 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in)

Weight
Axiom XL 16: 5.9 kg (13 lbs)

Axiom XL 19: 7.6 kg (16.76 lbs)

Axiom XL 22: 9.9 kg (21.83 lbs)

Axiom XL 24: 11.3 kg (24.9 lbs)

USB connection
USB-A: Touch input, USB-B: Touch output

Accessory connection
USB Micro B

GPS antenna connection
TNC type connector

External storage
Remote card reader required

Ethernet connection
PoE RayNet (10/100/1,000 Mbits/s) x 3

HDMI connections
HDMI in, HDMI out

Audio output
Left and Right RCA connectors via Power/Video/Audio cable.

Analog video connections
Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)

NMEA 0183 Support
Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721)

NMEA 2000 connection
DeviceNet connector

Wireless connections
Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n

External alarm connection
Bare-ended wires x 2

Internal storage
64 GB Solid State

LCD
Resolution
Axiom 2 XL 16: 1920 x 1080 pixels

Axiom 2 XL 19: 1920 x 1080 pixels

Axiom 2 XL 22: 1920 x 1080 pixels

Axiom 2 XL 24: 1920 x 1200 WUXGA

Size (diagonal)
Axiom 2 XL 16: 15.6″

Axiom 2 XL 19: 18.5″

Axiom 2 XL 22: 21.5″

Axiom 2 XL 24: 24″

Illumination
Axiom XL 16: 1300 nits / 1300 cd/m2

Axiom XL 19: 1200 nits / 1200 cd/m2

Axiom XL 22: 1275 nits / 1275 cd/m2

Axiom XL 24: 1300 nits / 1300 cd/m2

Viewing angle
Axiom 2 XL 16: Top 88° / Bottom 88° / Left 88° / Right 88°

Axiom 2 XL 19: Top 88° / Bottom 88° / Left 88° / Right 88°

Axiom 2 XL 22: Top 89° / Bottom 89° / Left 89° / Right 89°

Axiom 2 XL 24: Top 89° / Bottom 89° / Left 89° / Right 89°

Ratio
Axiom 2 XL 16: 16:9

Axiom 2 XL 19: 16:9

Axiom 2 XL 22: 16:9

Axiom 2 XL 24: 16:10

Type
IPS (In-Plane Switching)

Color depth
24-bit

Number of simultaneous touches
2

POWER
Power consumption @ 12 V dc
Axiom 2 XL 16: 76.56 W

Axiom 2 XL 19: 85.42 W

Axiom 2 XL 22: 94.25 W

Axiom 2 XL 24: 92.5 W

Power consumption @ 24 V dc
Axiom 2 XL 16: 71.53 W

Axiom 2 XL 19: 73.98 W

Axiom 2 XL 22: 79.46 W

Axiom 2 XL 24: 77.96 W

Off current @ 12 V dc
PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W)

Off current @ 24 V dc
PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W)

PoE operating voltage range
9.5 V dc to 32 V dc

Current
Axiom 2 XL 16: 8.56 A

Axiom 2 XL 19: 8.98 A

Axiom 2 XL 22: 10.12 A

Axiom 2 XL 24: 10.03 A

Operating voltage range
8 V dc to 32 V dc

Fuse rating
15 A

Nominal supply voltage
12 V dc / 24 V dc

LEN (NMEA 2000 Load Equivalency Number)
1

IN THE BOX :

1 MFD (Chartplotter)
2 Mounting gasket tape
3 Rear mounting bars x 2
4 Mounting bar fixings (M5x20 pozi countersunk) x 4
5 Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4
6 Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
7 Documentation
8 DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
9 RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
10 Power/Video/Audio cable 1.5 m (4.92 ft) right-angled
